BTS4000-5V10mA Battery Testing System
The BTS4000-5V10mA (CT-4000 series) is a multi-range mA battery testing system designed for high-precision charge/discharge evaluation down to the µA level. With 0.05% FS accuracy and computer-controlled programming, it supports common electrochemical analyses such as DCIR, dQ/dV, and basic tests for three-electrode systems. The system is widely used in battery R&D and manufacturing laboratories for performance testing of small-capacity cells, especially coin and pouch cells.

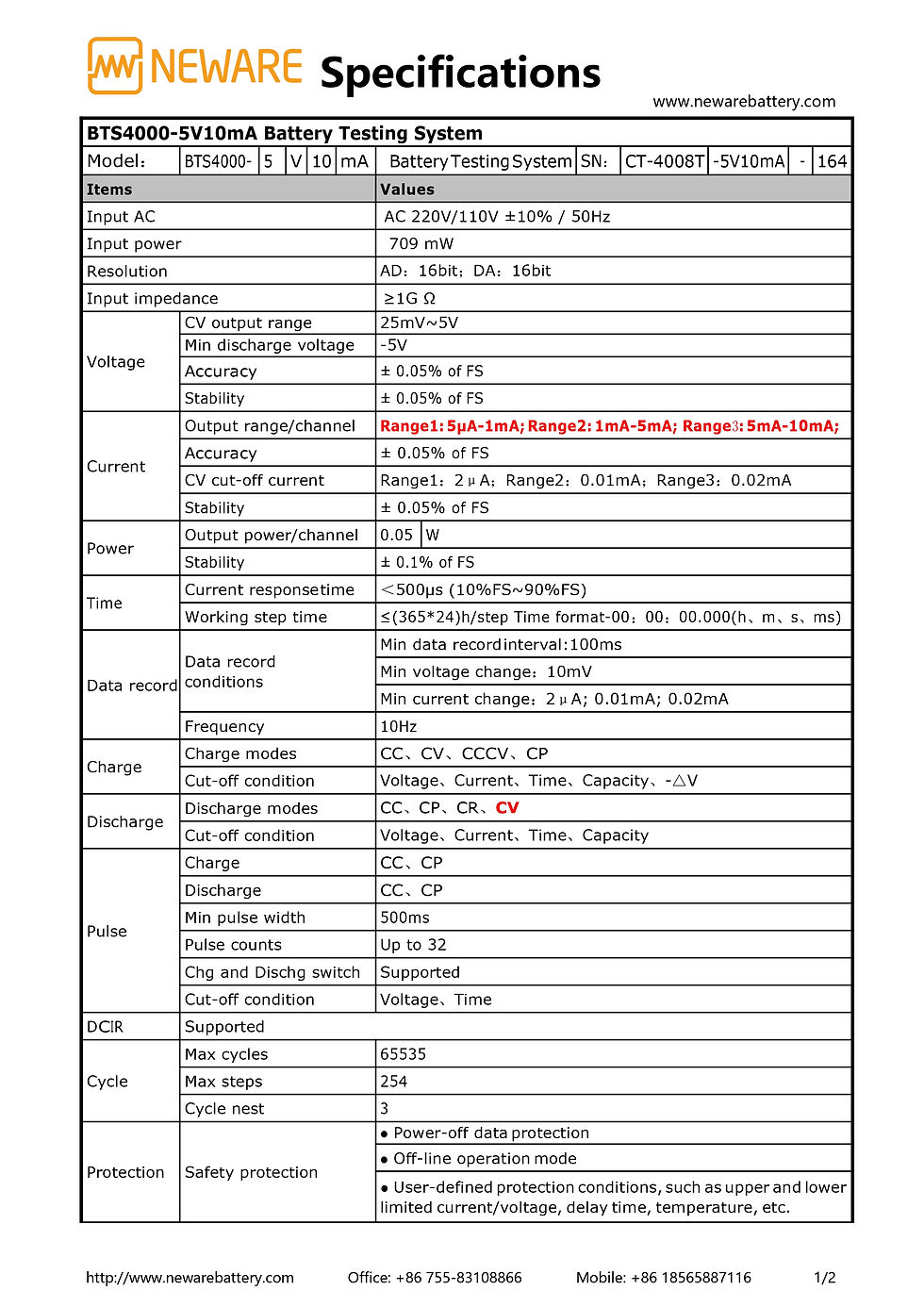

Specifications;
Accuracy: 0.05% full scale
Current Output Range:
Range 1: 5 µA–1 mA
Range 2: 1–5 mA
Range 3: 5–10 mA
Voltage Output Range: 25 mV–5 V
Minimum Discharge Voltage: -2 V
Data Recording Frequency: up to 10 Hz
Typical Applications: Coin cells, pouch cells
Brand/Origin:
NEWARE, China
