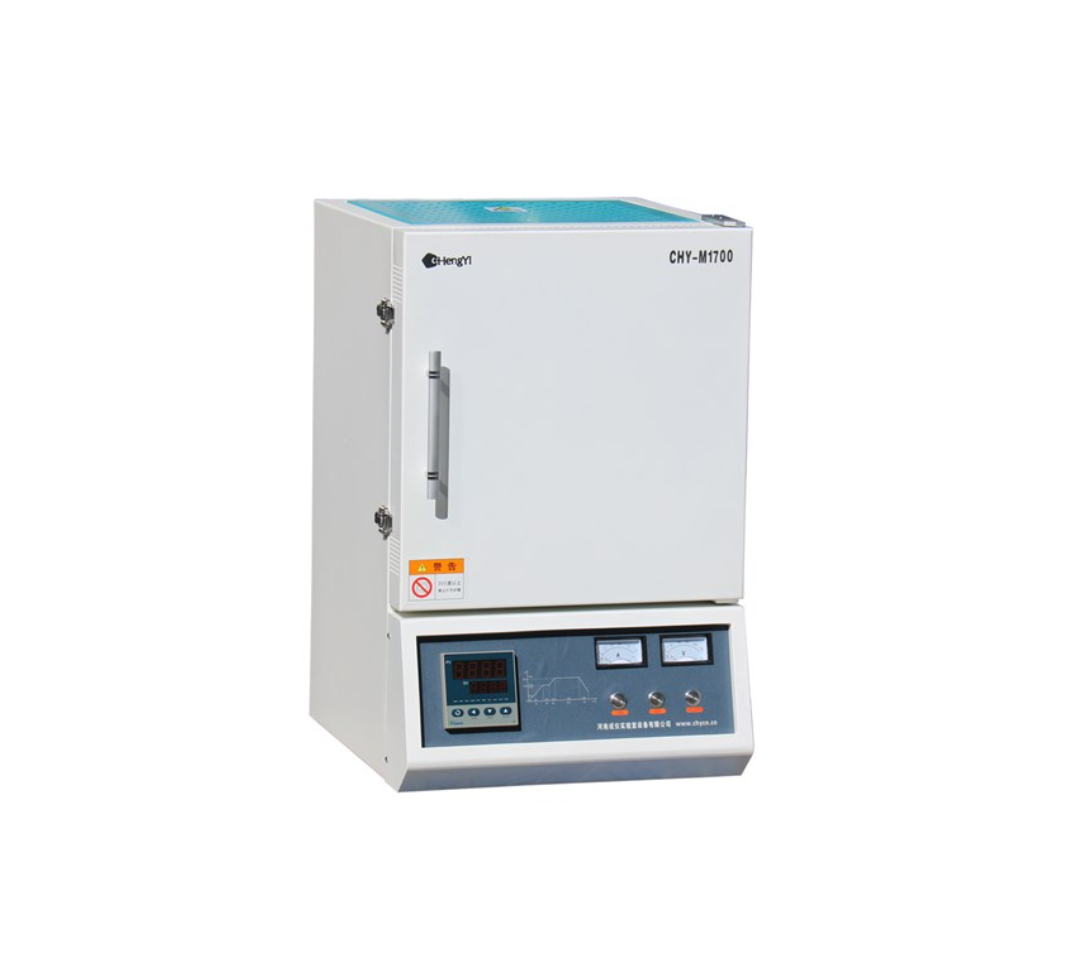

The CHY-M1700 Series is a high-temperature MoSi₂ muffle furnace designed for stable heat treatment up to 1650 °C with precise PID control and 30-segment programmable temperature profiles. It is suitable for laboratory sintering, calcination, and thermal processing of materials, and includes key safety protections such as over-temperature, overcurrent, and thermocouple-failure protection.
Specifications;
Model Series: CHY-M1700 Series
Furnace Door: Side-opening type
Maximum Temperature: 1650 °C
Working Temperature: ≤ 1650 °C
Heating Rate: ≤ 10 °C/min
Chamber (Hearth) Dimensions;
CHY-M1712: 120 × 120 × 120 mm (1.7 L)
CHY-M1716: 160 × 160 × 160 mm (4.1 L)
CHY-M1722: 220 × 220 × 260 mm (12.5 L)
Control & Safety;
Control Mode: Intelligent PID automatic control
Temperature Accuracy: ± 1 °C
Temperature Program: 30 programmable segments
Over-temperature Alarm: Yes
Overcurrent Protection: Yes
Thermocouple Failure Protection: Yes
Heating System;
Temperature Sensor: B-type thermocouple
Heating Element: MoSi₂ heating rods
Electrical;
Power Supply: 220 V, 50 Hz
Rated Power: < 5.0 kW
Manufacturer;
Henan Chengyi Equipment Science and Technology Co., Ltd., CHINA
